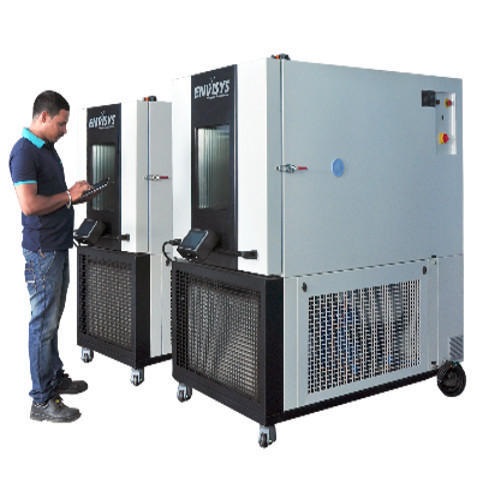

Choosing Vibration Chambers from Envisys Technologies


Vibration Chambers may be a terribly specialised field, not alright understood by several.  There are differing types of vibration and there are a vast variety of vibration Chamber specifications.  At Envisys Technologies, Vibration Chamber instrumentation is extremely costly to buy forcing several corporations to rent a vibration Chamber to meet their vibration testing necessities.

What are the vibration take a look at specifications?

The most common forms of vibration take a look at the services conducted by vibration test labs are curving and random. A choice can get to be created on what style of vibration is required and if a take a look at specification applies.

What is the dimensions and weight of the merchandise or Device below take a look at (DUT), what will it appear as if and the way several samples ought to be tested?

The science laboratory goes to raise you to supply the scale of the DUT and also the mounting foot print.  This info is needed to assess vibration take a look at fixtures and additionally to work out if the DUT can match on the vibration shaker table. At Envisys Technologies drawing or sketch or image with some overall dimensions is extremely useful. It is not a decent plan for the merchandise to hold over the edges of the table as a result of that might have an effect on its vibration response.

How can the DUT be mounted?

At Envisys Technologies, the mounting whole pattern of your product can in all probability not match the outlet pattern of the vibration take a look at. The DUT fixture ought to be fastened to the take a look at lab’s vibration table.  Then the merchandise is going to be mounted to the DUT fixture. Take a look at labs won’t drill holes in their vibration tables as a result of their costly specialised fixtures sometimes created with metallic element.

Ought the DUT to be power-driven and monitored throughout the test?

This can be a straightforward or terribly difficult task.  One difficult setup for a past take a look at took DES months of designing.  It needed three parts electrical, cooling water flowing through the merchandise, and plenty of measurements to be created throughout the vibration take a look at. This can be provided from special AC power provides. Electrical energy (DC) power may be provided from DC power provides or batteries from Envisys Technologies.

Do you would like response accelerometers on the DUT?

Some take a look at specifications like RTCA DO-160 need a resonance scan on the DUT.  This involves putting in response accelerometers on the DUT, then acting a resonance scan with low level accelerations (usually zero.5 or 1G) over a frequency vary.

Do the combined environments (such as temperature) and vibration required?

At Envisys Technologies, vibration testing in combined environments is way more durable and can be additional expensive than testing at temperature.  For now, let’s contemplate combined temperature and vibration testing. A rubber membrane is going to be accustomed seal the chamber to the vibration table.  The vibrations can occur within the chamber in an exceedingly confined space. Accelerometers ought to be automatically mounted as a result of several adhesives doesn’t rise up to extreme temperatures.

Are the other distinctive necessities required for the vibration test?

Unique necessities might be mechanical loading, internal pressure, fluid flow, etc.  For mechanical loading, it’s most popular to use a spring or bolt mechanism to use a gradual load to stay weight to a minimum.

At Envisys Technologies, Vibration Chambers are quite happy to assist you along with your vibration take a look at necessities. However please do perceive that some effort is required on your half to outline your vibration take a look at necessities. Good communications is crucial for a positive experience.

Envisys Technologies manufactures environmental chamber products like Vibration Test Chamber, Walk-In-Environmental Chambers, Altitude Chamber, Salt Spray Chambers, Industrial Chillers, Rain Chamber, Razor Blade Treatment Chambers, Industrial Ovens, Industrial Dryers, Thermal Shock Chambers, Dust Chamber etc.
